Testattu, täysin toimiva, 1 kk takuu.

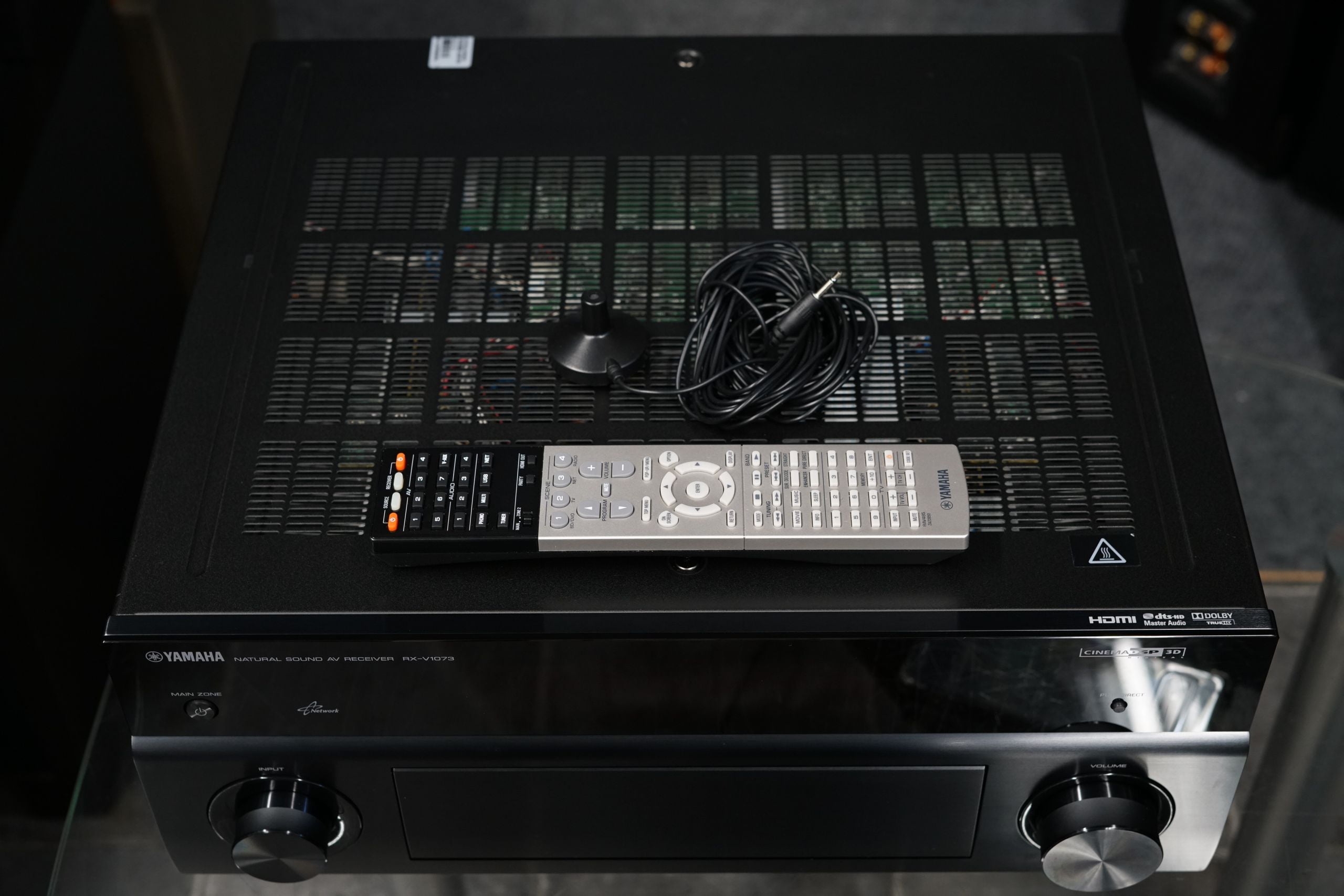

Kaukosäädin. Mikrofoni.
7.2-kanavainen viritinvahvistin verkko-ominaisuuksilla, automaattisella YPAO -äänenkalibroinnilla.
| RX-V1073 | ||
|---|---|---|
| Amplifier Section | Channel | 7.2 |
| Rated Output Power (1kHz, 2ch driven) | 120W (8ohms, 0.9% T HD) | |
| Rated Output Power (20Hz-20kHz, 2ch driven) | 110W (8ohms, 0.06% T HD) | |
| Dynamic Power per Channel (8/6/4/2 ohms) | 135/165/210/280 W | |
| Surround Sound Processing | CINEMA DSP | Yes (3D) |
| DSP Programs | 17 | |
| Dialog Level Adjustment | Yes | |
| Virtual Presence Speaker | Yes | |
| Dialogue Lift | Yes (no presence speakers required) | |
| SILENT CINEMA / Virtual CINEMA DSP | Yes | |
| Dolby TrueHD | Yes | |
| Dolby Digital Plus | Yes | |
| Dolby Pro Logic IIx | Yes | |
| DTS-HD Master Audio | Yes | |
| Audio Features | Pure Direct | Yes (with video on mode) |
| Compressed Music Enhancer | Yes | |
| YPAO multi-point measurement | Yes (R.S.C) | |
| Adaptive DRC (Dynamic Range Control) | Yes | |
| Initial Volume & Maximum Volume Setting | Yes | |
| Bi-amp capability | Yes | |
| Audio Delay | Yes (0-500 ms) | |
| 192kHz/24-bit DACs for all channels | Yes (Burr-Brown) | |
| Video Features | 4K Ultra HD Pass-through and upscaling | Yes |
| HDMI 3D passthrough | Yes | |
| HDMI Audio Return Channel | Yes | |
| HDMI upscaling | Yes (Analogue to HDMI / HDMI to HDMI) | |
| Deep Color/x.v.Color/24Hz Refresh Rate /Auto Lip-Sync | Yes | |
| Extensive Connection | HDMI Input/Output | 8 (front 1) / 2 (Simultaneous) |
| HDMI CEC | Yes (SCENE, Device Control) | |
| USB Input | iPod/iPhone/iPad, USB Memory, Portable Audio Player | |
| Network Port | Yes | |
| AirPlay | Yes | |
| Front AV Input | HDMI/USB/Analog Audio/Optical/Composite | |
| Digital Audio Input/Output: Optical | 4 (front 1) / 1 | |
| Digital Audio Input/Output: Coaxial | 3 / 0 | |
| Analog Audio Input/Output | 10 (front 1) / 1 | |
| Phono Input | Yes | |
| Component Video Input/Output | 4 / 1 | |
| S-Video Input/Output | 4 / 1 | |
| Composite Video Input/Output | 5 (front 1) / 1 | |
| Multi-Channel Input | 8ch | |
| Preout | 7.2ch | |
| Headphone Output | 1 | |
| Tuner Section | FM/AM Tuner | Yes |
| User Interface | On-screen display | Graphical User Interface |
| SCENE | SCENE PLUS (12 sets) | |
| App Control | Yes (iPhone/iPad/Android phone/tablet) | |
| Web Browser Control | Yes | |
| Remote Control Unit | Yes (Learning) | |
| Zone Control | Zone 2 Audio Output | Preout |
| Powered Zone | Zone 2 | |
| Zone Video Output | Component/S-Video/Composite | |
| Zone B Output | Yes (HDMI) | |
| RS-232C Interface | Yes | |
| +12V Trigger Output | 2 | |
| Remote (IR) Input/Output | 1 / 1 | |
| Party Mode | Yes | |
| General | Standby Power Consumption (IR only) | ≤0.3W (typical) |
| Auto Power Standby | Yes | |
| ECO mode | Yes | |
| Dimensions (W x H x D) | 435 x 182 x 430 mm; 17-1/8” x 7-1/8” x 16-7/8” | |
| Weight | 15.1 kg; 33.3 lbs. | |
