Testattu, täysin toimiva, 1 kk takuu.
Technical data

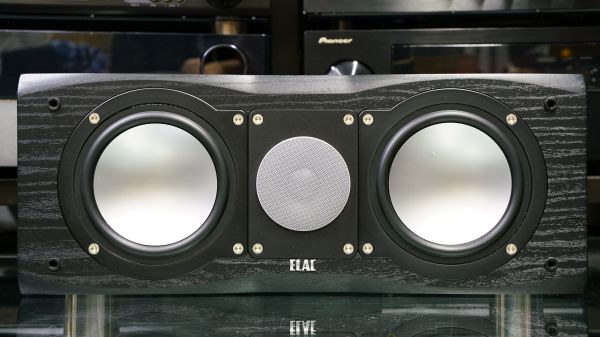

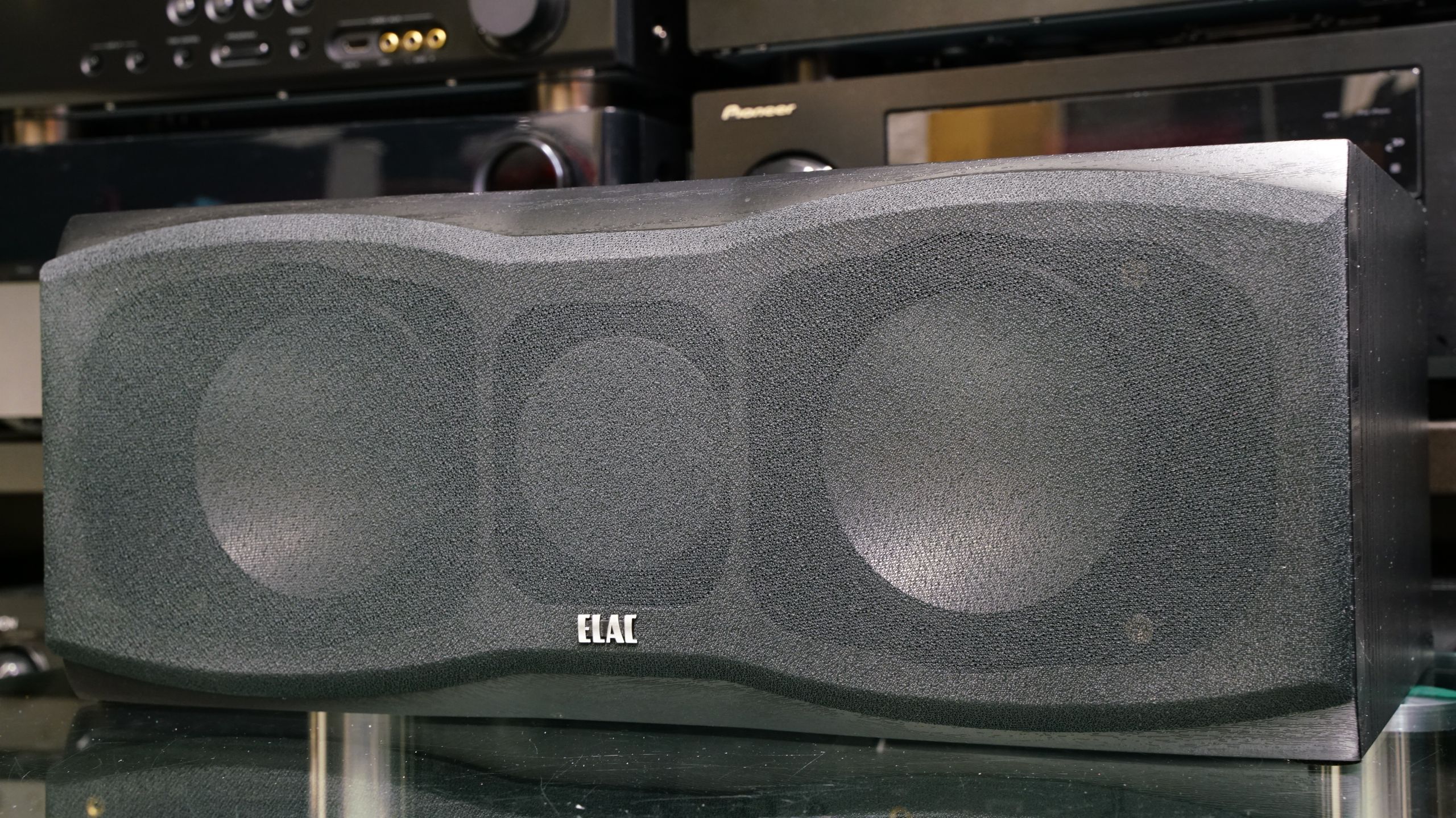

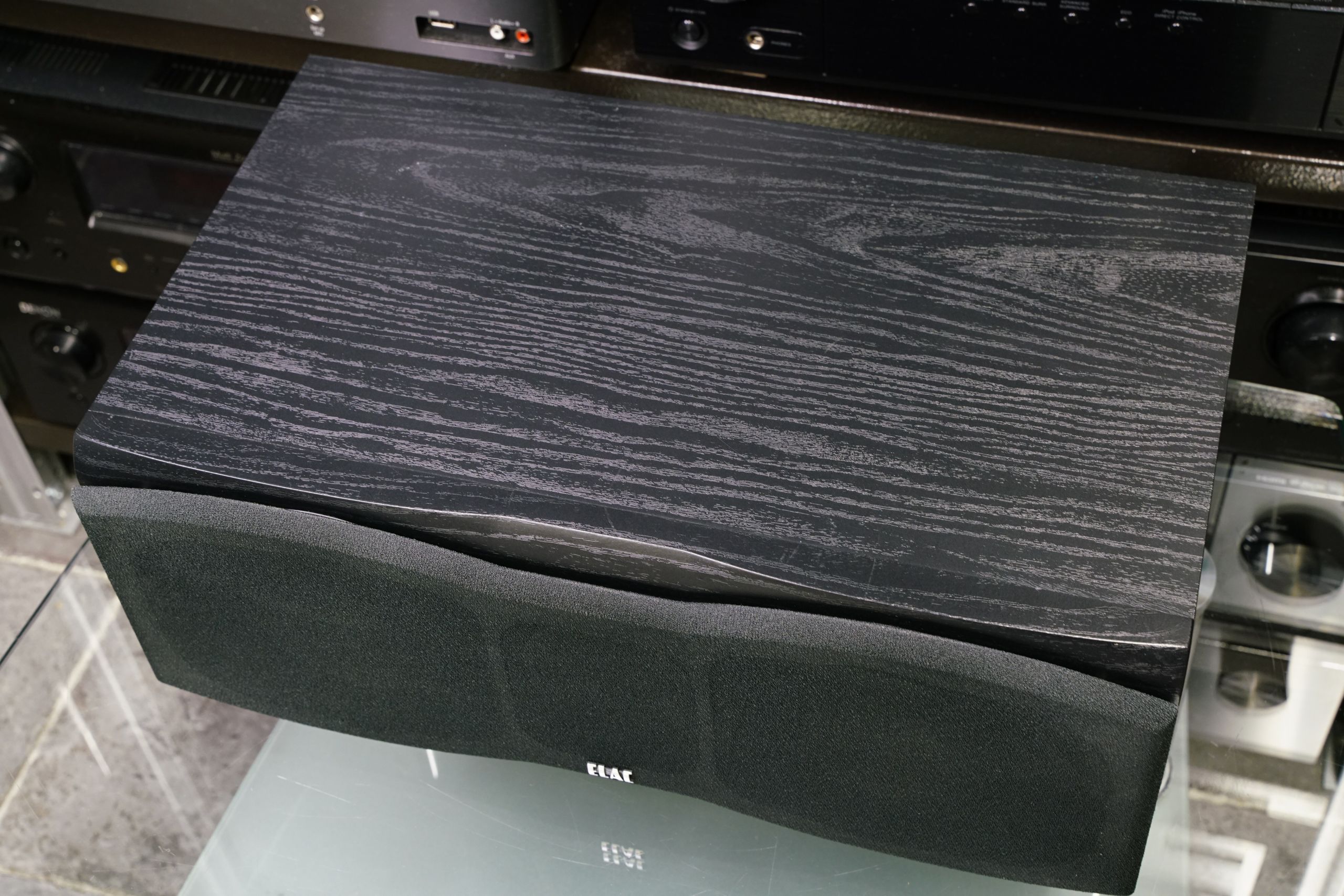

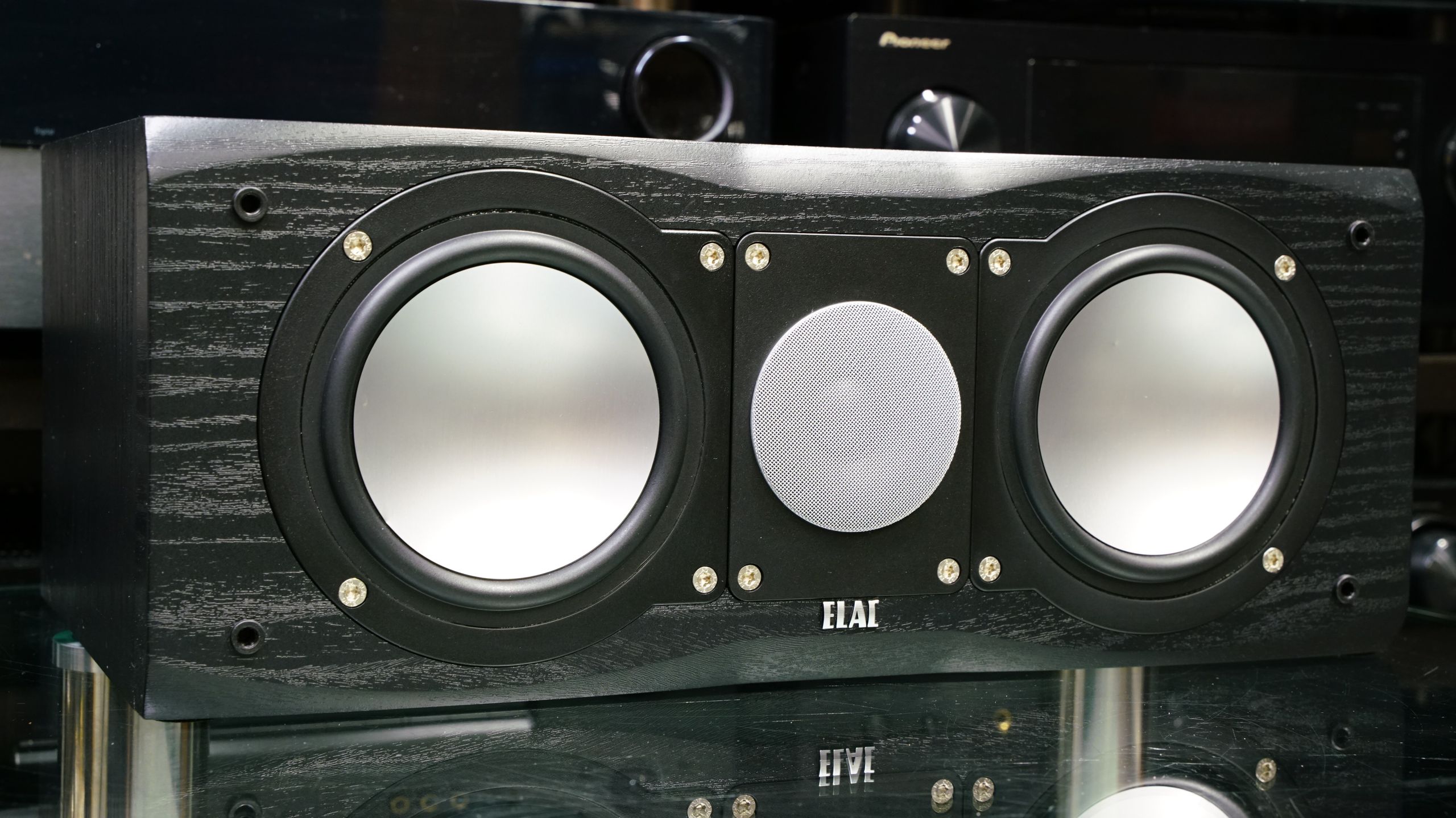

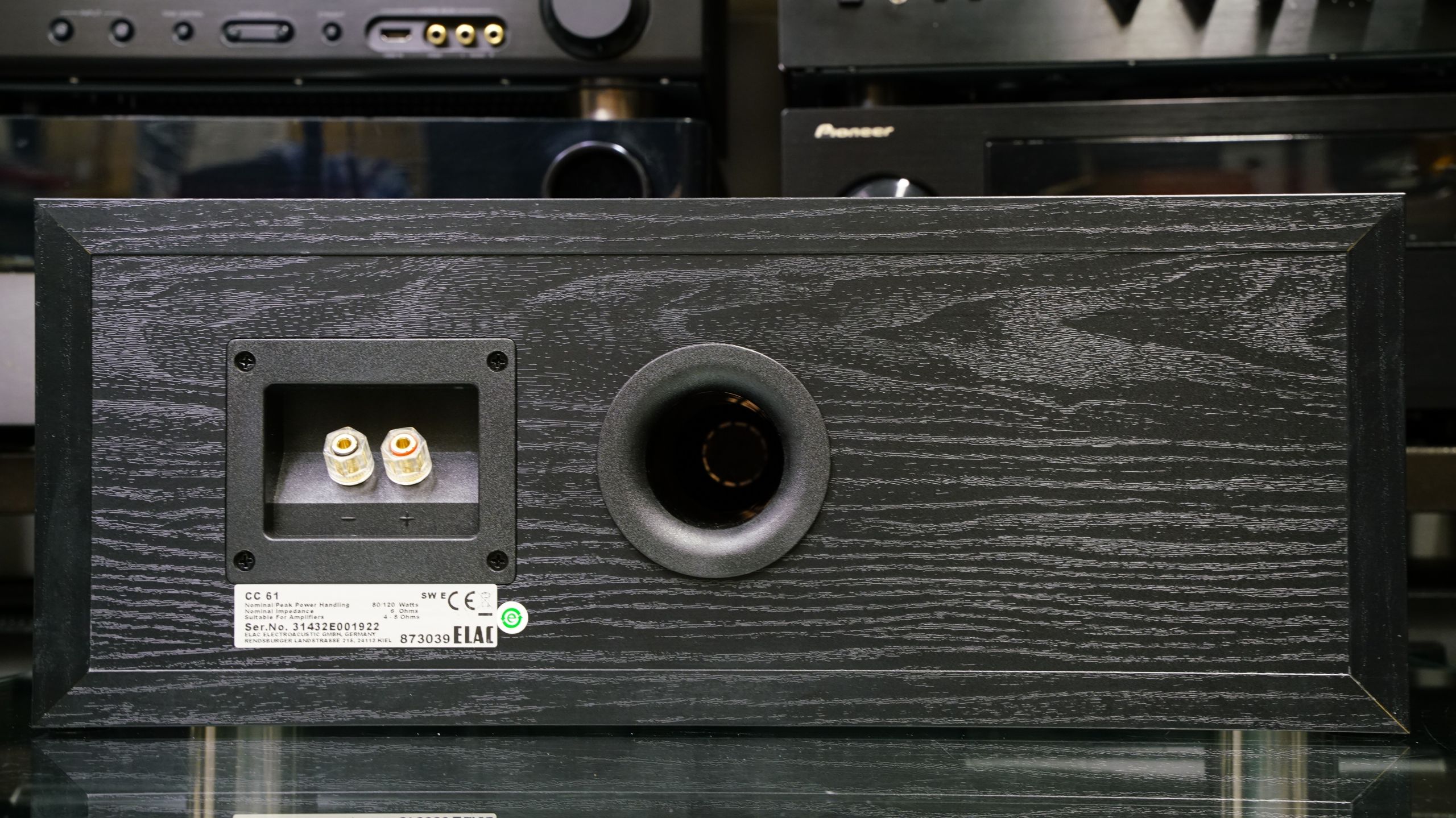

ELAC CC 61
Frequency switch of filter
2100 Hz
Dimensions H x W x D
Without/with casing
170 x 435 x 250/265 mm
Nominal capacity
80 W
Weight
Approx.7.5 kg
Impulse capacity
120 W
Principle
2-way, bass-reflex
Transmission range
48-25000 Hz
Subwoofer
2 x 140 mm AS cone, magnetically
screened
screened
Sensitivity
88.5 dB/2.8V/m
Mid-range
–
Suitable for amplifiers from.. to
4 -8 Ohm
Tweeter
1 x HT 25 silk dome, magnetically screened Nominal impedance
6 Ohm
Recommended amplifier capacity
at the above mentioned nominal
impedance
at the above mentioned nominal
impedance
20-150 W/channel
Minimal impedance
4.8 Ohm at 230 Hz
