Ilmainen toimitus Postin noutopisteeseen.
Laadukas viritinvahvistin. Mukana kaukosäädin. Testattu ,toimi.
| Amplifier power (watts) | 7 x 190 (6 Ohms), 7 x 160 (8 Ohms) |
| Analogue audio | REAR: 7.1 input (via 8 x RCA/phono sockets) Stereo line in (via 2 pairs RCA/phono) Tape loop (stereo line in & out, via 2 sets of 4 x RCA/phono) Turntable (phono) in (via 2 x RCA/phono) 7.1 pre-output (for connection to additional amplifier or subwoofer, via 8 x RCA/phono sockets) FRONT: Headphone socket (via 6.3mm (1/4″) stereo jack) Auto calibration microphone socket |
| DAC/Digital bits | 192kHZ/24-bit bit DAC 192kHZ/24-bit bit ADC |
| Digital audio | REAR: 4 x optical in (via Toslink) 3 x coaxial in (via RCA/phono socket) 2 x optical out (via toslink) |
| DSP, eq. modes & audio options | ”Sound retriever” mode enhances poorly compressed audio to bring closer to CD quality. ”Midnight” mode compresses dynamic range for late-night, neighbour friendly listening. Dialogue enhancement modes. Bass and treble controls. Advanced music, advanced movie, advanced cinema, advanced concert, expanded theatre, virtual surround, phones surround, advanced game, TV surround, sports, 5/6/7 channel stereo & auto surround modes. ”Stream Direct” bypasses all decoding and DSP modes. Supports multi-channel PQLS HDMI timing system when used with compatible PQLS-enabled Blu-ray players (such as BDP-LX52) or CD players – eliminates jitter for a more stable and composed sound from digital sources. Sampling Rate Converter – up-samples digital signals to 192 kHz to improve sound staging, low level detail and the purity of high frequencies. THX Ultra2Plus certified AIR Studios sound tested and certified |
| Extra | Supports Kuro link via HDMI, allowing control from compatible Kuro television remote handset; quick setup; sleep-countdown timer; display dimmer. |
| Finish | Gloss Black |
| Key decoding | Dolby: TrueHD, Digital Plus, Digital/EX, Pro Logic II/IIx DTS: DTS-HD Master Audio/High Resolution, DTS Express, ES, Neo:6, 96/24 Windows Media Audio 9 Pro Neural THX Surround |
| Networking | Ethernet networking allows connection to home network for MP3/AAC/WAV/FLAC/WMA (Windows Media Audio) music and JPEG photo streaming from DLNA compatible devices such as computers or networked storage devices. Also connects to Internet radio stations (requires a broadband Internet connection and router/hub connection) |
| On-screen display | Yes – Graphical User Interface (GUI) with iPod control display |
| Speaker outputs | 7 channel output via 4mm banana plug/binding post connectors. Configurable as 7.1 or 5.1 with bi-amplified front speakers or amplified second zone |

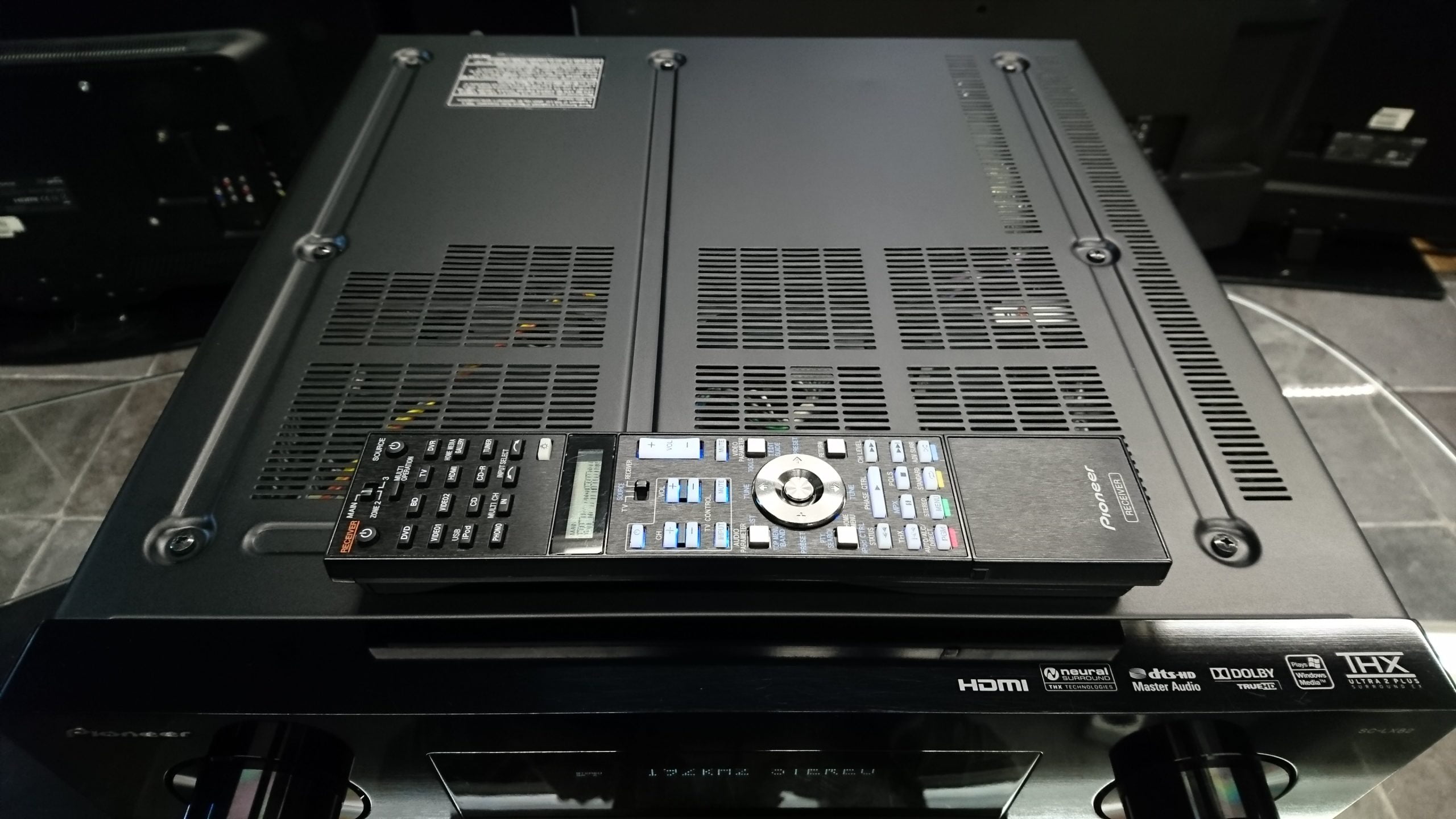

| Supplied accessories | Remote control with aluminium cases, illuminated keys, LCD display and included batteries, AM & FM indoor antennas, auto-calibration microphone |
| Tuner | FM (with RDS & RadioText) and AM with 63 presets |
| Video format conversion | Yes: Composite, S-Video, Component video all upconverted to HDMI and upscaled to 1080p. Composite, S-Video & component video all up and down converted to each other |

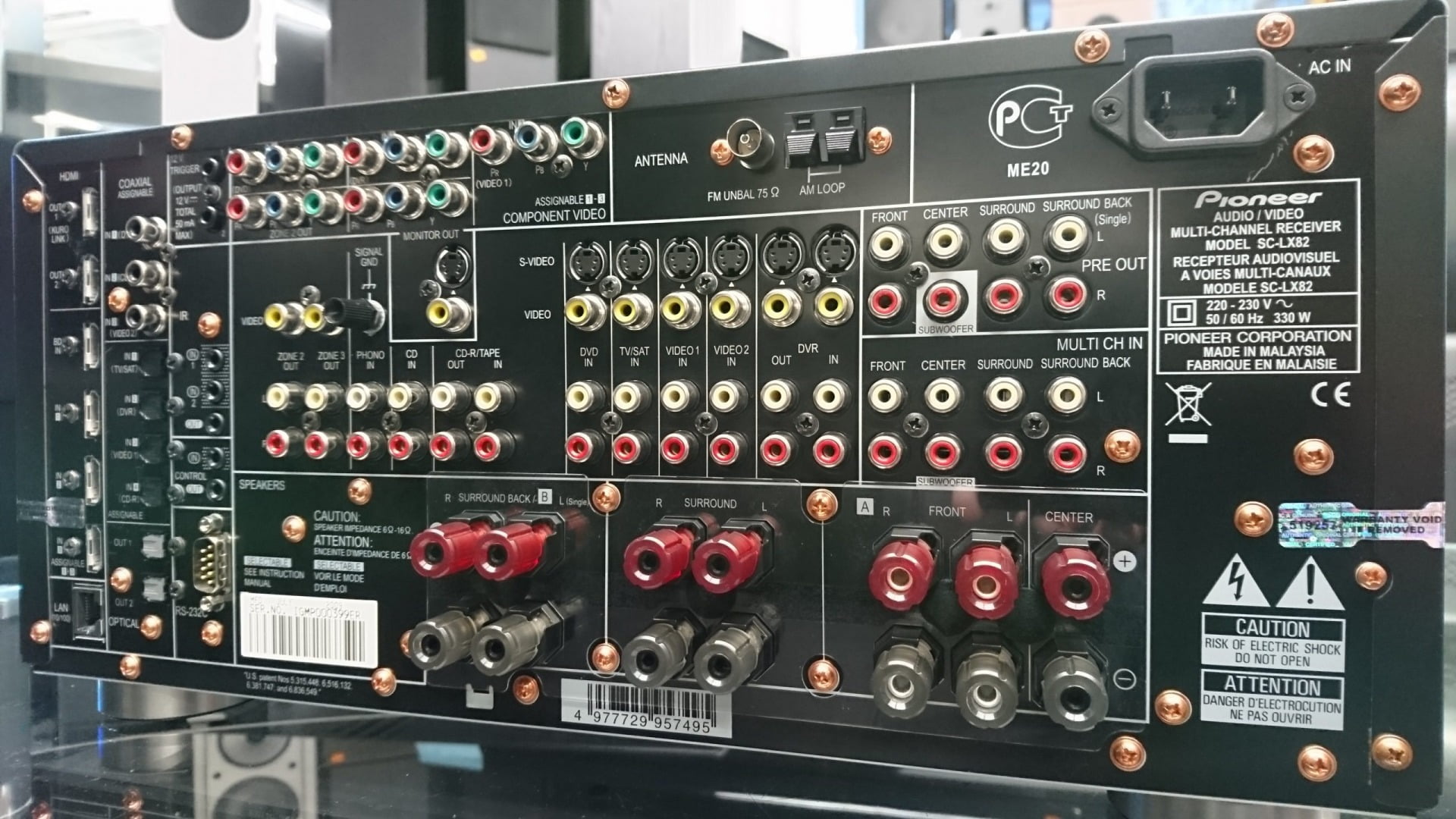

| Video/Audio inputs & outputs | REAR: 4 x HDMI in (input assignable, with 1080p upscaling and support for ’deep colour’, 24 frames per second and multi-channel audio) 3 x component video in (support HD resolutions and progressive scan, input assignable) Video loop (S-video, composite video & stereo line in & out, via 2 sets of 4-pin mini DIN & 3 x RCA/phono) 4 x video in (S-video, composite video & stereo line in, via 4-pin mini DIN & 3 x RCA/phono) 2 x HDMI*, component video, S-Video & composite video monitor outputs Zone 2 out (component video, composite video & stereo line out via 6 x RCA/phono) Zone 3 video out (composite video and stereo line out, via 3 x RCA/phono) Ethernet networking (via RJ45 connection) Control in & out (for control to/from other compatible devices) 2 x 12 volt trigger out (for synchronised power-up with compatible devices) Infrared (IR) in & out (for connection to compatible infra-red transmitter/receiver) FM & AM antenna sockets FRONT: HDMI in (input assignable, with 1080p upscaling and support for ’deep colour’, 24 frames per second and multi-channel audio) USB in (supports MP3, WMA, AAC, FLAC playback from external mass-storage device and iPod connection (5th generation iPod, Nano, Classic & Touch) – digital audio transfer from iPods) Composite video in (via RCA/phono, for video input from compatible iPods using supplied cable) *Dual HDMI outputs – ideal for simultaneous HD television and projector connection |
| W x H x D (mm) | 420 x 200 x 460 |
| Weight (kg) | 18.5 |
